EDMA Hot Knife France
To cut neatly EPS / XPS insulation foam without any dust. Blade length : 200 mm.
The blade temperature reaches 500°C in few seconds. Power : 190 W.
CE certified.
Supplied with a plastic case including a 200 mm blade, a metallic brush and a fixing key.
Code: 1544

Hot Wire cutting table for EPS/XPS
0-90degrees / 90-15degrees bevel cuts. Max Depth 330mm / Max Height 1320mm / Max Width 1550mm Includes; Carry case with wheels / Scaffold hanging accessory / 2 hot wires

Hot wire cutting machine for a clean cut without polystyrene beads projection.
For expanded and extruded polystyrene (E.P.S. and X.P.S.).
Max. depth : 330 mm.
Max. height : 1320 mm.
Max. width : 1550 mm.
From 0° to 90° angle cuts.
From 90° to 15° chamfered cuts.
Groove cutting until 300 mm depth.
Temperature of the hot wire : 350°C.
Transformer : 40 V / 200 W / 230 V.
CE certified.
Accessories included :
- Carrying case with wheels
- Scaffold hanging accessory
- Folding feet
- 2 hot wires
Possible cutting shapes : rectangular, angled, chamfered, stepped, grooved.

Code: 1540 - 330mm x 1320mm x 1550

Hot Wire corner cutter option for table
Corner and vertical cutting option. Max cutting depth 500mm / Max cutting thickness 310mm. Includes Li-ion battery and charger / carry case.

Cutting accessory for Expanded Polystyrene (EPS) and Extruded Polystyrene (XPS) to adapt on hot wire cutting table (ref 266555).
Especially for corner cutting and vertical cutting of polystyrene panels.
Maximum cutting depth : 500 mm.
Maximum cutting thickness : 310 mm.
2 different positions on the hot wire cutting table :
- Max. 1000 mm height.
- Max. 600 mm height.
Accessories included :
- Carrying case.
- Li-ion battery and charger.
The charging time of the battery is 70 minutes.
The battery autonomy is about 5 hours*
(*for an average of 20 seconds per cutting action and 4 minutes break between each cut).
Code: 1541 - 500mm x 310mm

Pedal Kit to activate ON/OFF - optional item for table
Code: 1542

Hot wire cutting Ark for EPS
Hot wire cutting bow for a clean cut without polystyrene beads projection.
For expanded and extruded polystyrene (E.P.S. and X.P.S.).
Max. depth : 330 mm.
Max. width : 1370 mm.
Temperature of the hot wire : 350°C.
Transformer : 40 V / 200 W / 230 V.
CE certified.
Possible cutting shapes* : rectangular and angled.
*With a wooden template (not included).

Code: 1543 - 330mm x 1370mm

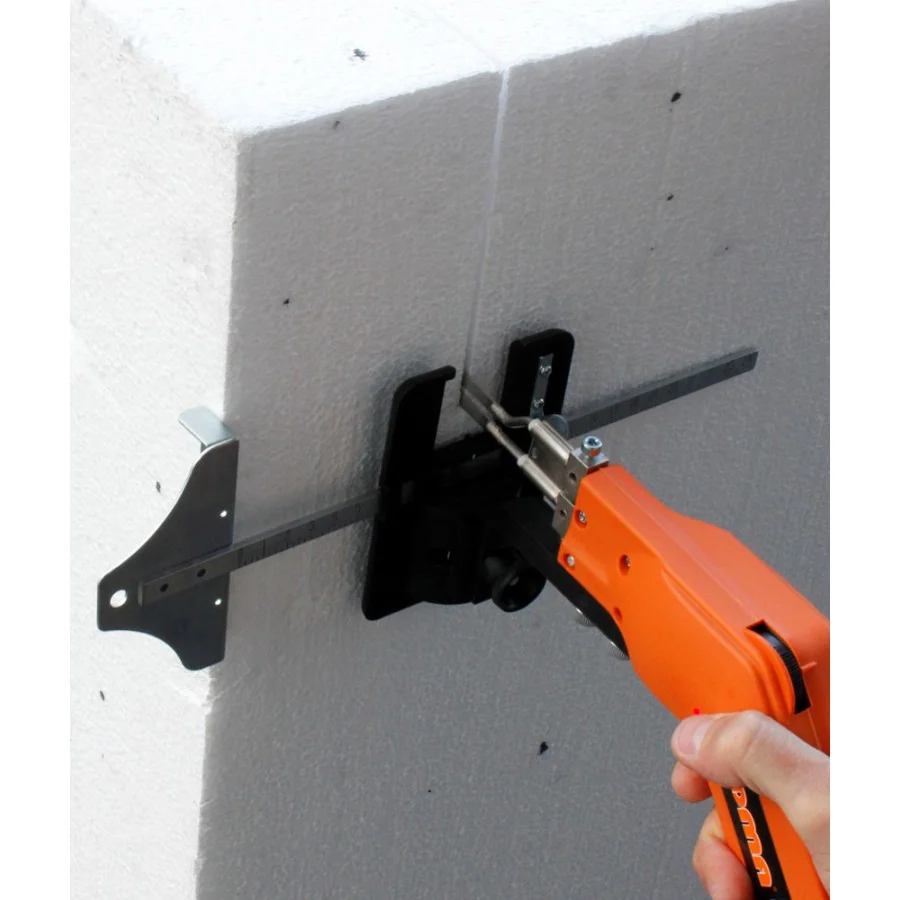

Guider for hot knife
Perfect straight cut up to 210 mm width.

Code: 1545

Hole Cutting Blade - Option for hot knife
axi. 70 mm depth.
Mini. 25 mm depth.
Ideal for electrical box.

Code: 1546 - 70mm

Grooving blade - optional item for hot knife
Perfect 30 mm groove cut. Ideal for electrical pipes.

Code: 1547 - 30mm

Replacement wire for table
Code: 1548 - 1370mm
